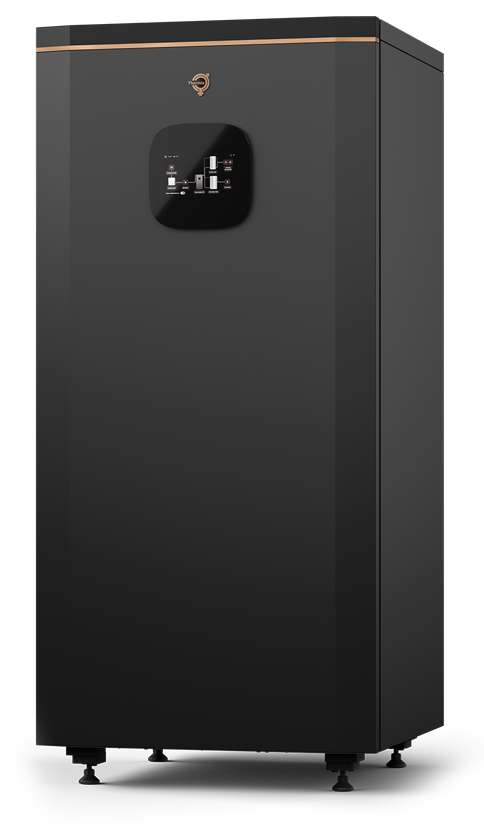

Thermia Morix

The Thermia Morix inverter-controlled commercial ground-source heat pump is the ideal choice for all types of commercial buildings with advanced heating and cooling systems and very high demands on both performance and functionality. This makes it the perfect solution for large commercial and public buildings needing an advanced control system and special applications.

With an impressive seasonal coefficient of performance (SCOP)* of 5,32 (Morix M at B0/W35, according to EN14825, cold climate and SCOP 5,13 in an average climate), the Thermia Morix enables you to better manage your energy consumption. Morix can supply temperatures of up to 75°C.

*SCOP is a measure that describes how efficiently a heat pump works over a full year, including warm and cold periods. It indicates the relationship between the amount of energy produced and the amount consumed. The higher the value, the better the system.

Thermia Morix is available in three sizes:

• Morix S      (7 – 33 kW) 400V
• Morix S-E  (7 – 33 kW) 400V
• Morix  M    (12 – 45 kW) 400V

It is possible to cascade-connect to achieve up to 720 kW. Cascade-connected pumps start one after the other depending on energy need, thus ensuring minimum energy consumption regardless of the output. With a unique feature called Energy Source Control, heating capacity is adapted to the currently available energy source (boreholes or exhaust air).

With a wide range of accessories, Morix can also heat a pool and work in combination with additional heat sources.

For more than 100 years, Thermia has been developing tomorrow’s heating solutions. By choosing the refrigerant R290 for the Morix, we are challenging today’s technology and continuing to improve and develop products at the forefront of technology. The Morix uses the natural refrigerant R290 with a very low GWP** value of just 0,02

**GWP, Global Warming Potential, is the amount of heat a greenhouse gas traps in the atmosphere compared to the heat trapped by the same amount of CO2, which is the reference gas with a GWP of 1.

Natural refrigerant R290 is subject to special safety requirements. In the case of heat pump installed indoor using natural refrigerant R290, safety has been tested very thoroughly.

The Morix offers uncompromising safety thanks to its advanced built-in solution, and the heat pump can be installed in rooms of any size.

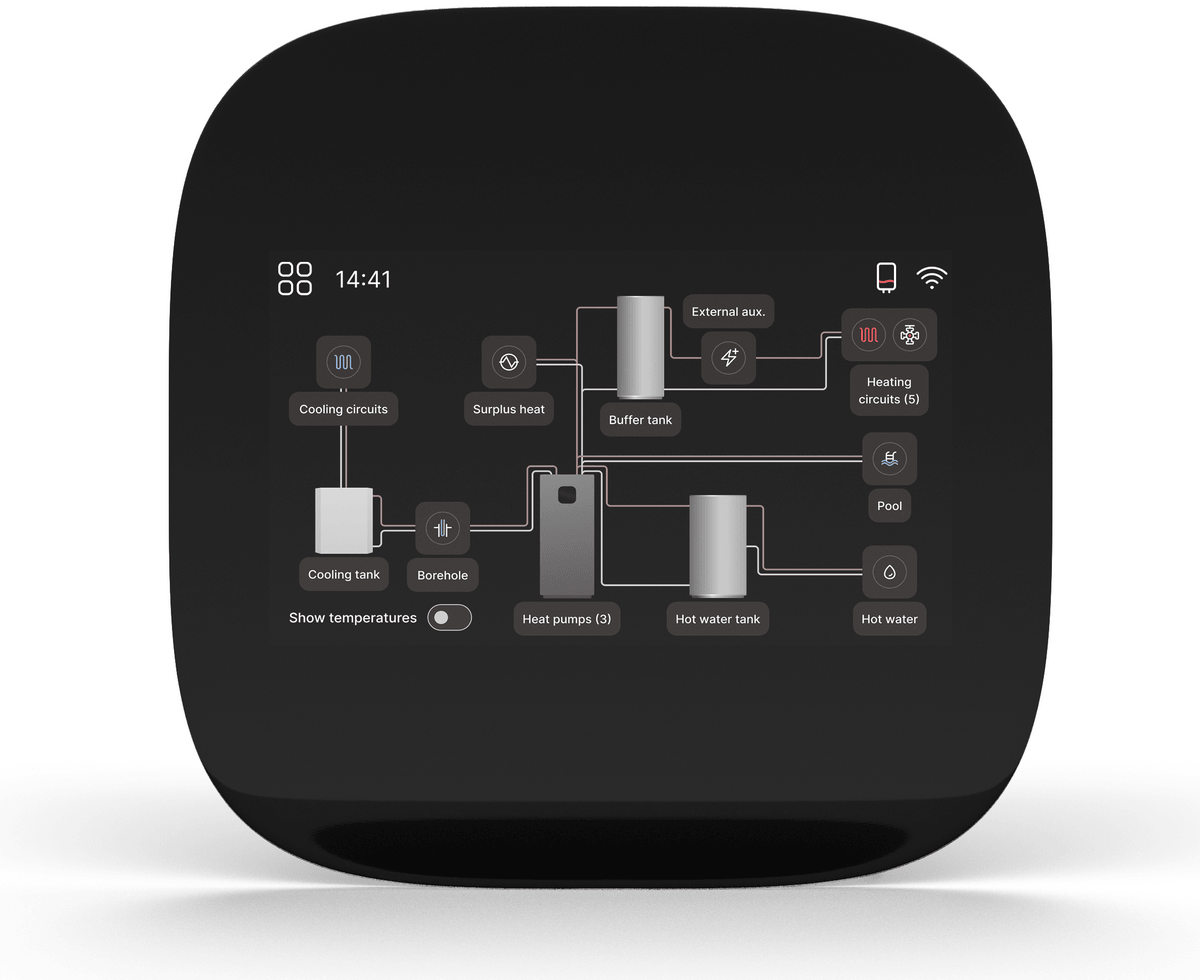

Morix feature 7″ color display,  with easy-to-read graphics and user-friendly menus. The dashboard offers a system solution overview, where you can turn the visualisation of temperatures on or off with one click.

The controller coordinates and controls the heating system. Thermia heat pumps work with complete precision to give your home the best possible indoor climate at the lowest possible cost. Our controller is very easy to use.

Features:

• System solution overview with temperatures
• Color touchscreen and intuitive menu
• Full overview of temperatures and curves
• Compressor “envelope” visualization
• Up to 6 heating circuits
• Software update via Over-the-Air (OTA)
• Plug-and-play software update via USB slot
• ‘Smart Grid’ – ready
• Ready for building management systems (BMS) via Modbus

Built-in connectivity makes the heat pump more accessible to users and installers than ever before.

It features:

• Wi-Fi
• Cellular – 4G***

For those who prefer traditional connections, we also offer an RJ45 wire connection.

*** The 4G connection is free of charge until 30 April 2028. With 4G, there is no need for Wi-Fi via a router or a cable.

The Morix allows you to connect up to 16 heat pumps to deliver up to 720 kW. It also enables you to benefit from the cascading option: cascade connected pumps start one after another depending on energy need, thus ensuring minimum energy usage regardless of the output.

If you already have a Mega or Mega E heat pump, you can expand your energy system by adding a Morix. The Morix control system is compatible with the Mega and Mega E.

A cascaded heat pump system allows more than one heat pump unit to work at the same time to meet a property’s heating and hot water requirements. Separate heat pump units can be used for different tasks (i.e. one for heating, another for hot water), or they can share the property’s heating and hot water demand between them.

By continuously adjusting the heat pump’s output to current demand, inverter technology enables the heat pump to supply 100% of your energy requirements. This in turn means that the user does not have to pay for any auxiliary heating. Inverters can combine large heating demand in winter and smaller hot water demand during summer, without the need for large hot water tanks. In addition, inverter technology is more friendly for power grid soft start and lower starting current.

The large areas of glass in many modern buildings are great during the darker months of the year but often lead to overheating in summer. Passive cooling ensures a perfect indoor climate all year round. If necessary, this can be supported with active cooling using the heat pump’s compressor. Both passive and active cooling are far more economical than traditional air-conditioning systems. The Morix can do a great job of cooling your property during the summer.

Simultaneous heating and cooling enables you to reduce operating costs even more. To achieve this, multiple heat pumps are connected in parallel between hot and cold buffer tanks. The hot tanks connect to the heating zones and the cold tanks to the cooling zones. Morix then simply exchanges hot for cold, depending on the needs of the building. For example, as a hotel conference room is cooled down, the excess heat removed is re-used to produce hot water for the swimming pool or SPA.

The advanced control system of this commercial heat pump constantly monitors all functions, providing you with a reassuring overview. Morix can communicate with other control systems (building management systems) via Modbus. It can also be controlled and monitored via a management system that gathers information on alarms, ventilation and other systems in the same building.

The MyThermia app enables you to check that your heating system is working properly, reduce the temperature when you are on holiday, or receive a notification if anything unexpected comes up. Our online system provides installers with comprehensive diagnostics data and also enables them to respond promptly to notifications or access a live feed on system performance.

The MyThermia app is available for both Android and iPhone.

MyThermia – Log in to your account

Terms and Conditions

Thermia heat pumps are designed, tested and manufactured in one of the harshest climates in Europe – Sweden. Swedish winters can be extreme. February is usually the coldest month, with temperatures dropping as low as -30°C or even lower in the north and heating is essential from September to May.

All our products are designed and built from top-quality European components with authorized Thermia consultancy for system design. Thermia Morix is built on over 50 years of experience in developing and supplying heat pumps.
